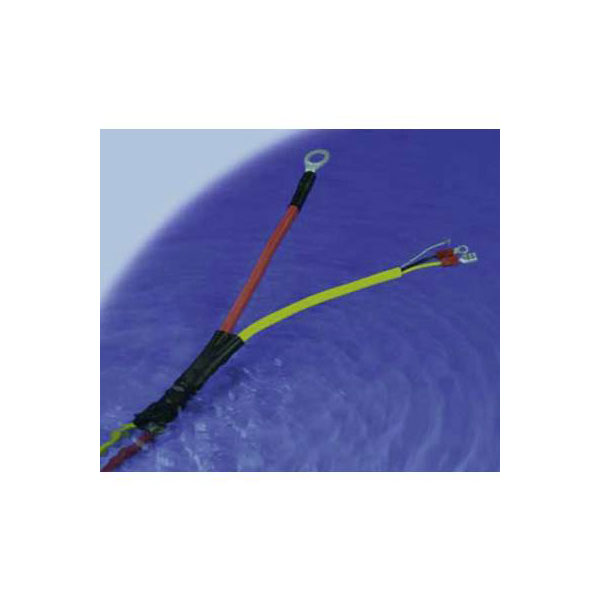

Image Representative of Range
DSG Canusa 6110090953 Black Adhesive Heat Shrink Tubing 3:1 9mm
Standard range
Order Code:
Brand:
DSG-Canusa
MPN: 6110090953 EAN-13: 2050000171970 63-0208
- RoHS Compliant
- Country of Origin:
- Free UK shipping available
- View Full Product Range (5)
| Qty | Unit Price (Ex VAT) |
|---|---|
| 1+ | £2.31 |
Price per unit Ex VAT
This adhesive heat shrink tubing from DSG Canusa has a shrink ratio of 3:1. The adhesive on the inside of the tubing melts to produce effective, leakproof insulation of electrical connections, junctions, splices and components.
This heat shrink will be supplied in one continuous length, subject to the maximum reel size. For example, an order for 5 metres will result in a single 5-metre strip being supplied, not 5 one-metre lengths.
- Shrink ratio 3:1
- Shrinking temperature +95 to +200°C
- Dielectric strength 20KV/mm min. according to VDE 0303 Part 2
- Elongation at break 500% min according to IEC 60684
- Tensile strength 17MPa to IEC 60684-2
- Colour: Black
- Nominal diameter (post-shrinkage): 3mm
- Nominal diameter (pre-shrinkage): 9mm
- Temperature range: -55 to +85°C
- Manufacturer's part 6110090953
This heat shrink will be supplied in one continuous length, subject to the maximum reel size. For example, an order for 5 metres will result in a single 5-metre strip being supplied, not 5 one-metre lengths.
| Colour | Black |
|---|---|
| Length | 1000mm |
| Ratio | 3:1 |
| Shrunk Diameter | 3mm |
| Supplied Diameter | 9mm |
