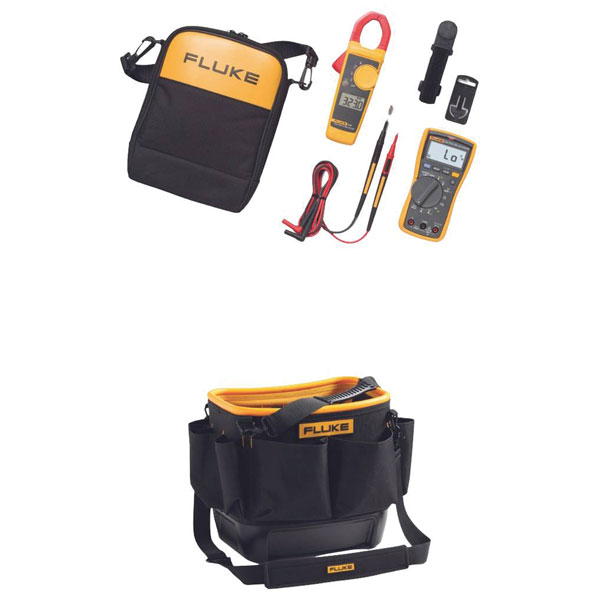

Fluke 5592565 Handheld Multimeter Clamp Meter Digital Incl. Bag, CAT III 600 V

Compact real effective measuring device for industrial use The Fluke 117 is the ideal measuring device for demanding applications such as business buildings, hospitals or schools. Model 117 allows contact-free voltage testing, saving time. Real-effective measurements and optimized ergonomics make the 320 series clamp-on ammeters the most important for installation and troubleshooting in industrial and building technology applications. The model Fluke 323 is perfectly suitable for current measurements up to 400 A in cramped switch cabinets.

Type	Clamp meter
A AC reading range (min.)	0.001A
A DC reading range (max.)	10A
AC resistance	5MΩ
Amperage reading range AC (max.)	10A
Amperage reading range DC (min.)	0.001A
Basic accuracy	0.5%
Calibrated to	Manufacturer's standards (no certificate)
Current reading	AC/DC
DC Resistance	10MΩ
Dim	(W x H) 84 mm x 167 mm
Display	Digital
Display (counts)	6000
Frequency Range	45 Hz - 1kHz
Frequency reading range	0.01 Hz - 50kHz
Height	167mm
Interfaces	none
Measurement type (details)	True RMS
Misc Attribute	117/323/TB25
Power supply (details)	9 V block
Reading category	CAT III 600 V
Reading range - capacity	1 nF -9999µF
Reading range - resistance	0.1 Ω - 40 MΩMΩ
V AC reading range (max.)	600V
V AC reading range (min.)	0.1mV
Voltage DC reading range (max.)	600V
Voltage metering	AC/DC
Voltage reading range DC (min.)	0.1mV
Weight	550g
Width	84mm
