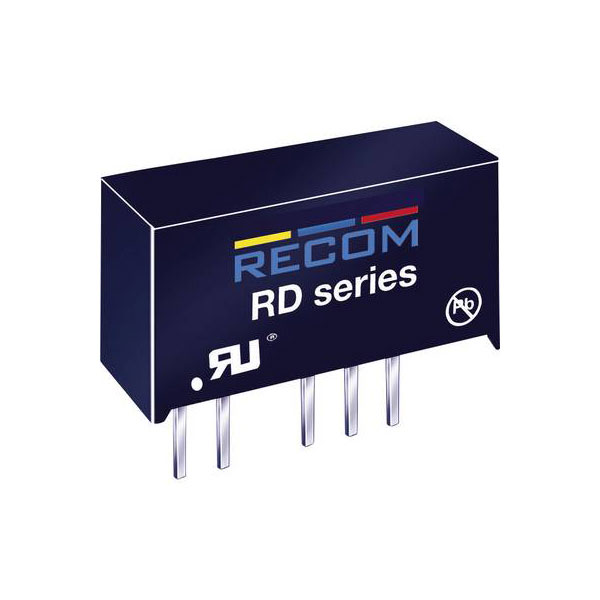

Image Representative of Range
Recom 10000236 RD-2415D DC/DC Converter 24V In 15V/15V Out
Standard range
Order Code:
Brand:
Recom
MPN: RD-2415D 49-8213
- RoHS Compliant
- Country of Origin: Taiwan
- Free UK shipping available
- View Full Product Range (7)
| Qty | Was | Unit Price (Ex VAT) |
|---|---|---|
| 1+ | £8.04 | £6.62 |
| 5+ | £7.76 | £6.58 |
| 10+ | £7.68 | £6.53 |
Price per unit Ex VAT
The Recom RD-2415D is a Dual Output 2W DC/DC Converter from the RD Series. This SIP 7 converter has been specifically designed for applications where dual power rails need to be created from a single rail supply and a low cost solution is required.
With efficiencies up to 85%, the full output power is available over the operating temperature range -40°C to +85°C and the converter can be used in ambient temperatures of up to +100°C with some derating. This converter is supplied with 1kVDC Isolation.
- Input voltage: 12V DC
- Output voltage: Dual 15V DC
- Output power: 2W
- SIP 7 Package
- Material: UL94V-0
- Operating Temperature from -40°C to +85°C
- Weight: 2.8g
- Efficiency: 82-86%
- Dimensions: 19.65(L) x 7.05(W)mm
- 1kVDC Isolation
- Type: DC-DC Converter RD Series
- Manufacturer's part: RD-2415D
| Mounting Style | SIP-7 |
|---|---|
| Number of Outputs | 2 |
| Output Current Max | 66mA |
| Output Current Min | -66mA |
| Output Voltage Max | 15V |
| Output Voltage Min | -15V |
| Power Rating | 2W |
| Supply Voltage Range | 24V |
| Temperature Range | -40 to +85°C |
