TE Connectivity RTE24024 24V 8A DPCO Relay RTE24

TE Connectivity
Standard range
Order Code:

60-1251

Brand: TE Connectivity MPN: RTE24024
Qty Unit Price (Ex VAT)
1+ £2.76
25+ £2.30
100+ £1.68
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1,687 in stock, despatched same dayAdditional quantity lead time 16 months

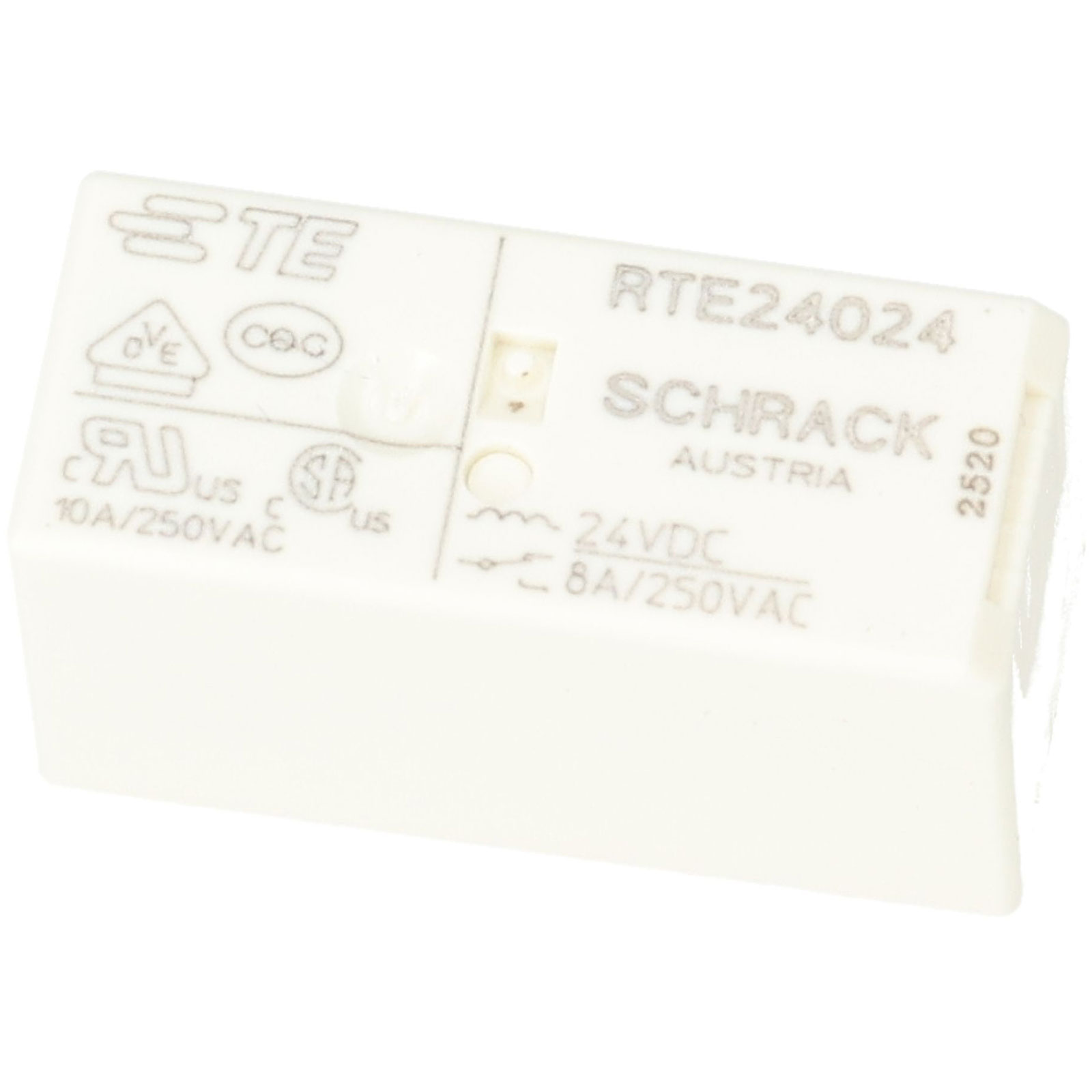

A PCB mounting power relay from TE Connectivity ideally suited to a wide range of applications such as domestic appliances, heating control, emergency lighting, modems, timer, POS automation, and interface modules.


  • Immersion cleanable, sealed package
  • Rated voltage 24V DC
  • 2 CO contact configuration
  • Pinning 5mm
  • Complementary DIN rail sockets, plastic retaining clip and marking tag also available
  • Manufacturer's part RTE24024

The colour may differ as per the attached PCN.
Coil Resistance 1440Ω
Coil Voltage 24V
Contact Configuration DPDT-CO
Height 15.7mm
Length 29mm
Mounting Type PCB
Operating Temperature -40 to +70°C
Switching Current 8A
Switching Power 2000VA
Switching Voltage Max (AC) 400V
Type Connectivity RTE
Width 12.7mm
