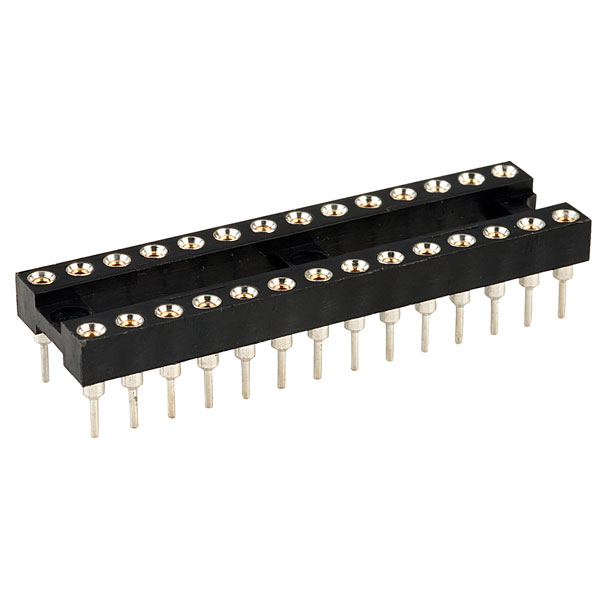

Low profile DIL socket with 28 pins, open frame style.
- Gold contact plating
- 2.54mm lead pitch, 7.62mm row pitch
- Solder leg style
- Turned pin contact style
- 1A current rating
- 0°C to +85°C operating temperature
- 100 cycles life
- 20mΩ max contact resistance
- UL Approved.
| Row Pitch |
7.62mm |
| Contact Material |
Copper alloy |
| Contact Plating |
Tin |
| Contact Style |
Turned |
| Current Rating |
1A at 100 Vac. Min.A |
| Height |
2.8mm |
| Lead Pitch |
2.54mm |
| Leg Style |
Solder Pin |
| Length |
35.5mm |
| Number of Pins |
28 |
| Temperature Range |
0 to +85°C |
| Type |
IC socket machine pin |
| Width |
10.1mm |
