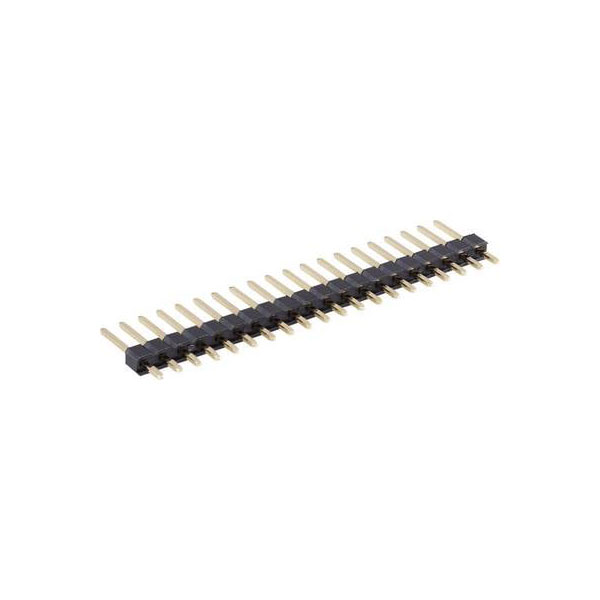

Image Representative of Range
BKL 10120207 Male Header 2.54mm Pitch Straight 1 x 50-pole 6.8mm Pins
Standard range
Order Code:
Brand:
BKL
MPN: 10120207 EAN-13: 4011376702135 54-5071
- RoHS Compliant
- Country of Origin: Taiwan
- Free UK shipping available
- View Full Product Range (11)
| Qty | Was | Unit Price (Ex VAT) |
|---|---|---|
| 1+ | £1.08 | £0.920 |
Price per unit Ex VAT
BKL Electronics 10120207 For vertical mounting as a cable connector, PCB connector strip or with option jumpers. For printed circuit boards, flat cable connectors, etc. The insulation is notched between each pin making it easy to cut the strips into intermediate lengths.
- Gold-plated
- Contact material: Gold plated
- Contact resistance: Max 20 mΩ
- Content: 1 pc
- Dimensions, height: 12.6mm
- Dimensions, length: 127mm
- Dimensions, width: 2.54mm
- Grid pitch: 2.54mm
- Manufacturer part No.: 10120207
- Nominal current: 3A
