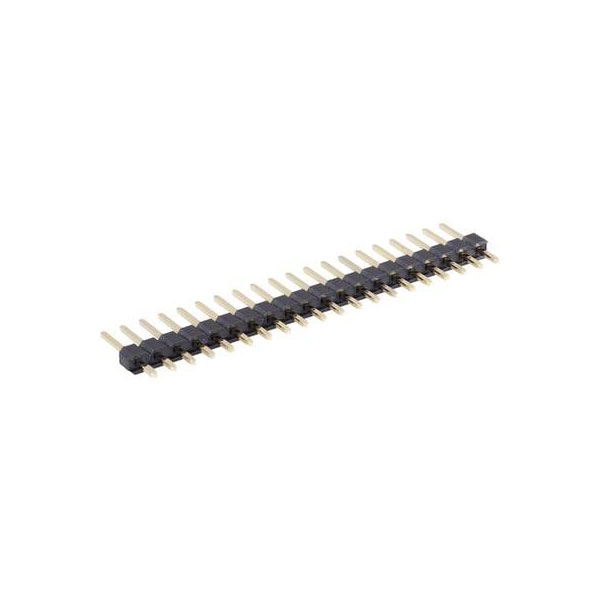

BKL 10120511 Male Header 2.54mm Pitch Straight 1 x 36-pole 5.8mm Pins
Image Representative of Range

BKL 10120511 Male Header 2.54mm Pitch Straight 1 x 36-pole 5.8mm Pins

BKL
Standard range
Order Code:

54-5077

Brand: BKL MPN: 10120511 EAN-13: 4011376702197
Qty Unit Price (Ex VAT)
5+ £0.400
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 5
319 in Stock, despatched in 4 days

BKL Electronics 10120511 For vertical mounting as a cable connector, PCB connector strip or with option jumpers. For printed circuit boards, flat cable connectors, etc. The insulation is notched between each pin making it easy to cut the strips into intermediate lengths.


  • Gold-plated
  • Contact material: Gold plated
  • Contact resistance: Max 20 mΩ
  • Content: 1 pc
  • Dimensions, height: 11.6mm
  • Dimensions, length: 91.44mm
  • Dimensions, width: 2.54mm
  • Grid pitch: 2.54mm
  • Manufacturer part No.: 10120511
  • Nominal current: 3A
Pitch 2.54mm
Connection Through hole
Number of Pins 36
Number of Rows 1
Orientation Straight
Type Header
