Binder 99-0475-102-07 Male 4-5mm 7 Pin Cable Mount Screw with Solder Terminal

Binder 99-0475-102-07 Male 4-5mm 7 Pin Cable Mount Screw with Solder Terminal

Order Code:

55-1142

  Copy to clipboard
( Write a review )
Brand: Binder  Copy to clipboard MPN: 99-0475-102-07 Copy to clipboard
 Report an error

Discontinued

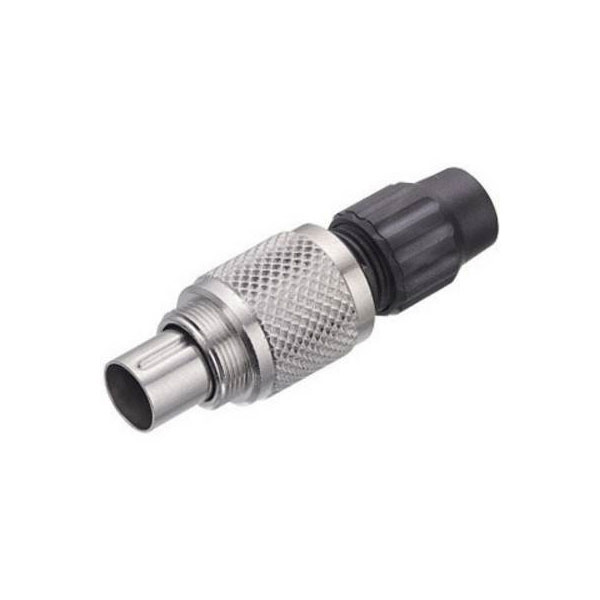

A 7-pin male black and silver subminiature cable mount M9 screw connector with a 4 to 5mm outlet and solder terminals.
  • Number of poles: 7
  • Connector locking system: Screw
  • Termination: solder
  • Wire gauge (mm): 0,14 mm²
  • Wire gauge (AWG): 26
  • Cable outlet: 4 - 5 mm
  • Degree of protection: IP 40
  • Mechanical operation: >500 mating cycles
  • Upper temperature: +85 °C
  • Lower temperature: -40 °C
  • Rated voltage: 125 V
  • Rated impulse voltage: 1500 V
  • Pollution degree: 1
  • Overvoltage category: II
  • Material group: III
  • Rated current (40°C): 1 A
  • Volume resistivity: ≤ 3 mΩ
  • Material of contact: CuZn (brass)
  • Contact plating: Au (gold)
  • Material of contact body: PA (UL 94 V-0)
  • Material of housing: PA (UL 94 VH-B)
Cable Diameter 4 to 5mm
Contact Material Brass
Contact Plating Gold
Current Rating 1A
Gender Male
IP Rating IP40
Mounting Type Cable
Number of Ways 7
Termination Method Solder
Voltage Rating (AC) 125V
