BKL 10120203 Male Header 2.54mm Pitch Straight 1 x 10-pole 6.8mm Pins

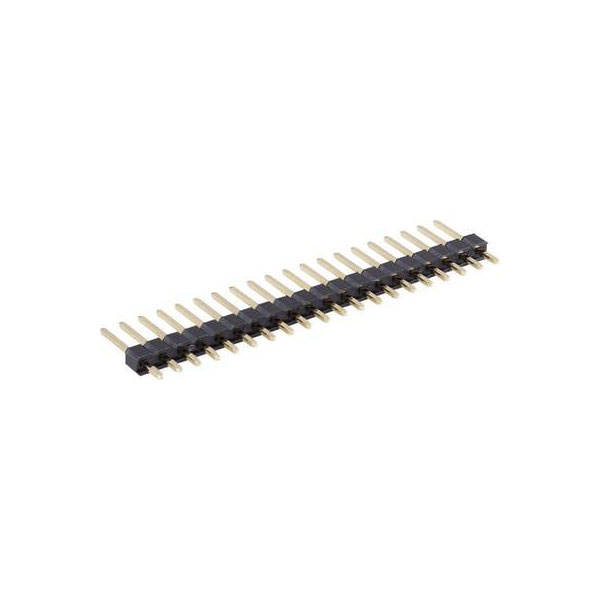

Image Representative of Range

BKL 10120203 Male Header 2.54mm Pitch Straight 1 x 10-pole 6.8mm Pins

BKL
Standard range
Order Code:

54-5067

Brand: BKL MPN: 10120203 EAN-13: 4011376702098
Qty Unit Price (Ex VAT)
5+ £0.260
Price per unit Ex VAT
Order in multiples of 5
157 in stock, despatched in 4 working days

BKL Electronics 10120203 For vertical mounting as a cable connector, PCB connector strip or with option jumpers. For printed circuit boards, flat cable connectors, etc. The insulation is notched between each pin making it easy to cut the strips into intermediate lengths.


  • Gold-plated
  • Contact material: Gold plated
  • Contact resistance: Max 20 mΩ
  • Content: 1 pc
  • Dimensions, height: 12.6mm
  • Dimensions, length: 25.4mm
  • Dimensions, width: 2.54mm
  • Grid pitch: 2.54mm
  • Manufacturer part No.: 10120203
  • Nominal current: 3A
