Schützinger Bench & Research and Development Safety quick-fit terminal 615199

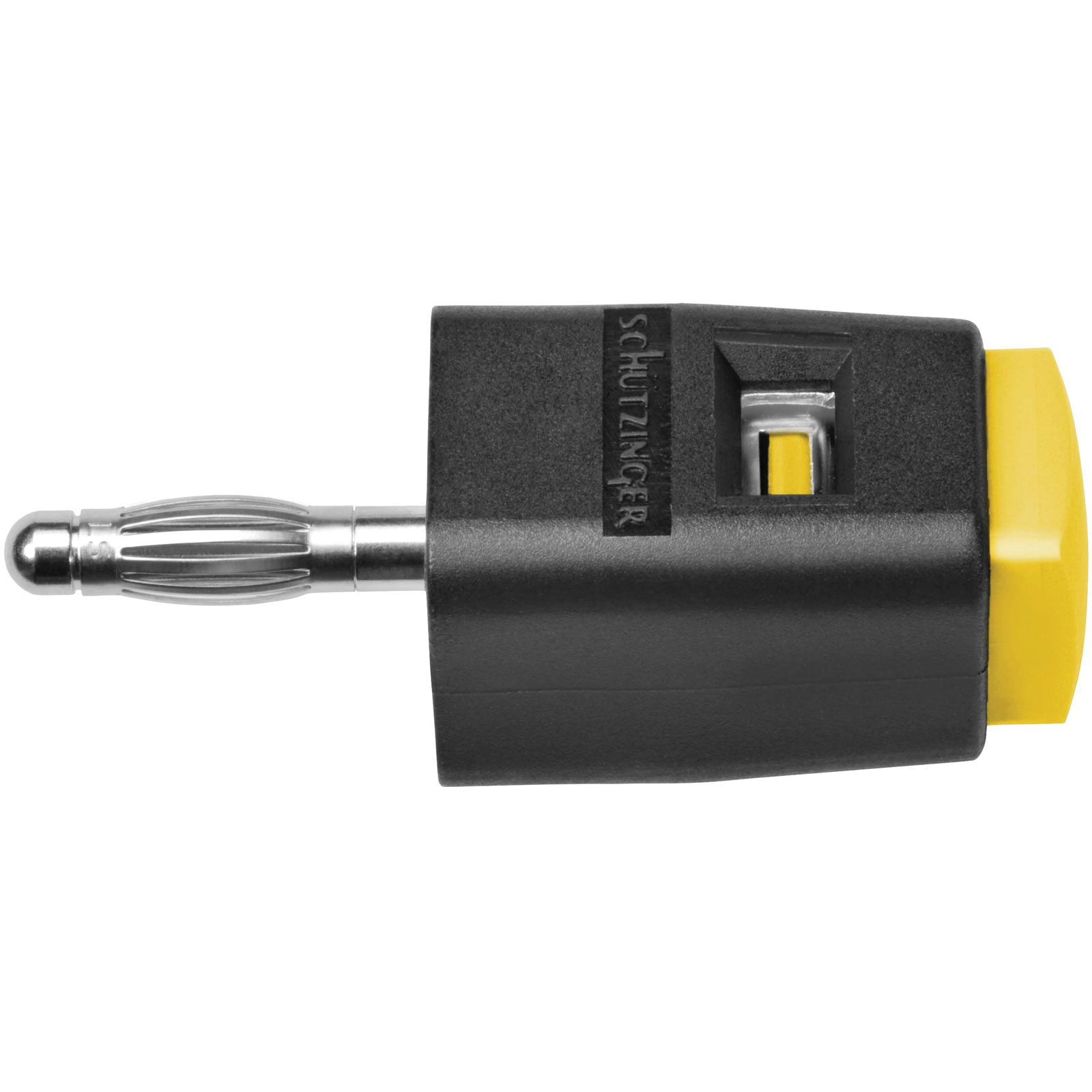

The Schützinger quick-fit terminals are safety components used for electrical connections, featuring different colours for identification and a 16A capacity.
Image | Product | Buy Qty | Pricing (Ex VAT) | Connection | Factory colour | Contact material | Manufacturer part # | Material (details) | Insulation material | Misc Attribute | Nominal voltage | RoHS-compliant | Temperature Range | Type | Nominal current | Nominal current - rounded value | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
| Soldering | Blue | ESD 798 / BL | PA 6.6 | ESD 798 / BL | 300V | Yes | Safety quick-fit terminal | 16A | 16A | |||||||||||||
|
|
| Soldering | Red | ESD 798 / RT | PA 6.6 | ESD 798 / RT | 300V | Yes | Safety quick-fit terminal | 16A | 16A | |||||||||||||
|
|
| Soldering | Black | ESD 798 / SW | PA 6.6 | ESD 798 / SW | 300V | Yes | Safety quick-fit terminal | 16A | 16A | |||||||||||||
 |
|
| Connector | Yellow | Nickel plated | SDK 502 / GE | PA 6.6 | SDK 502 / GE | From - 25 °C to + 90°C | Safety quick-fit terminal | 16A | 16A | |||||||||||||
 |
|
| Connector | Green-yellow | Nickel plated | SDK 502 / GNGE | PA 6.6 | SDK 502 / GNGE | From - 25 °C to + 90°C | Safety quick-fit terminal | 16A | 16A | |||||||||||||
 |
|
| Connector | Orange | Nickel plated | SDK 502 / OR | PA 6.6 | SDK 502 / OR | From - 25 °C to + 90°C | Safety quick-fit terminal | 16A | 16A | |||||||||||||
 |
|
| Blue | Nickel plated | SDK 504 / BL | PA 6.6 | SDK 504 / BL | From - 25 °C to + 90°C | Safety quick-fit terminal | 16A | 16A | ||||||||||||||
 |
|
| Yellow | Nickel plated | SDK 504 / GE | PA 6.6 | SDK 504 / GE | From - 25 °C to + 90°C | Safety quick-fit terminal | 16A | 16A | ||||||||||||||
 |
|
| Green | Nickel plated | SDK 504 / GN | PA 6.6 | SDK 504 / GN | From - 25 °C to + 90°C | Safety quick-fit terminal | 16A | 16A | ||||||||||||||
 |
|
| Green-yellow | Nickel plated | SDK 504 / GNGE | PA 6.6 | SDK 504 / GNGE | From - 25 °C to + 90°C | Safety quick-fit terminal | 16A | 16A | ||||||||||||||
 |
|
| Orange | Nickel plated | SDK 504 / OR | PA 6.6 | SDK 504 / OR | From - 25 °C to + 90°C | Safety quick-fit terminal | 16A | 16A | ||||||||||||||
|
|
| Red | SDK 5230 / RT | PA 6.6 | SDK 5230 / RT | 300V | Yes | Safety quick-fit terminal | 16A | 16A | ||||||||||||||
|
|
| Black | SDK 5230 / SW | PA 6.6 | SDK 5230 / SW | 300V | Yes | Safety quick-fit terminal | 16A | 16A | ||||||||||||||
|
|
| Connector | Red | SDK 799 / RT | PA 6.6 | SDK 799 / RT | 300V | Yes | Safety quick-fit terminal | 16A | 16A | |||||||||||||
|
|
| Connector | Black | SDK 799 / SW | PA 6.6 | SDK 799 / SW | 300V | Yes | Safety quick-fit terminal | 16A | 16A | |||||||||||||
|
|
| Red | SDK 800 / RT | PA 6.6 | SDK 800 / RT | 300V | Yes | Safety quick-fit terminal | 16A | 16A | ||||||||||||||
|
|
| Black | SDK 800 / SW | PA 6.6 | SDK 800 / SW | 300V | Yes | Safety quick-fit terminal | 16A | 16A | ||||||||||||||
|
|
| Red | SDK 801 / RT | PA 6.6 | SDK 801 / RT | 300V | Yes | Safety quick-fit terminal | 16A | 16A | ||||||||||||||
|
|
| Black | SDK 801 / SW | PA 6.6 | SDK 801 / SW | 300V | Yes | Safety quick-fit terminal | 16A | 16A |
